5 Mm Striped Conductive Polyester Woven Fabric Anti Static

Brand Name : QS

Model Number : QS-AF-001

Certification : ISO9001,ISO14001

Place of Origin : China

MOQ : 10 roll

Price : Negotiable

Supply Ability : 100rolls/day

Packaging Details : 1roll/bag

Material : 100% Polyester

Feature : Anti-Static, Waterproof，Washable, Strong Lamination

Density : 165*89

Width : 56/57"

Color : Regular is White, other colors can be customized

Style : Plain

Contact Now

5 Mm Striped Conductive Polyester Anti-Static Woven Fabric

1. Production data sheet

ITEM	5MM STRIPE		5MM GRID		2.5MM GRID
COMPOSITION	99% Polyyarn 1% conductive fiber	99% Polyyarn 1% conductive fiber	98%Poly yarn 2% conductive fiber	98% poly yarn 2% conductive fiber	96% poly yarn 4% conductive fiber
WEAVE	1/2 twill	Plain / twill	1/2 twill	Plain / twill (3/2twill)	2/3 twill
WEIGHT g/m2	125	110	125	110	130
YARN TYPE	100D	75D	100D	75D	100D
WIDTH	150 cm		150 cm		150 cm
AIR PERMEABILITY	30 c.c/cm 2/sec		30 c.c/cm 2/sec		18 c.c/cm 2/sec
SURFACE RESISTIVITY	106 ~ 108 ohm/unit		106 ~ 108 ohm/unit		105 ~ 107 ohm/unit
FRICTION CHARGES	< 300 V		< 100 V		< 15 V
ELECTRICAL POTENTIAL	0.4 μC/m2		0.3 μC/m2		0.1 μC/m2
DECAY TIME	1.0 sec		0.5 sec		0.1 sec
PARTICLE GENERATION	60%--80%		60%--80%		80%--90%
TEAR STRENGTH	Warp 4100gf Weft 6250gf		Warp 4170gf Weft 6000gf		Warp 4500 Weft 6050gf
TENSILE STRENGTH	Warp 820N Weft 1590N		Warp 830N Weft 1580N		Warp 860N Weft 1270N
COLOR RETENTION	4-5

2.Product Description:

High quality anti-static polyester dust-proof work clothes fabric, made of polyester yarn.
Operating personnel wearing comfortable, grounded or anti-static anti-static clothing is the most effective protection measures for the company.
Antistatic fabrics are guaranteed to pass the Antistatic Association standard and continue to protect your products.
We also offer a wide variety of colors, fabrics and styles.

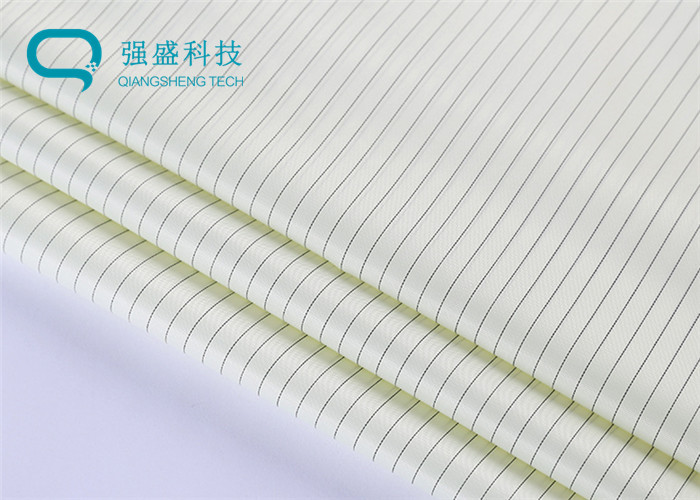

3. Picture

5 Mm Striped Conductive Polyester Woven Fabric Anti Static
